In the past months,Pine Energy (Shenzhen)co., Ltd has been devoted to serious design and innovative development of the new product. It is officially called China Wholesale 12v 100ah Rechargeable Lifepo4 Battery Lithium Iron Lifepo4 100a Bms 4000 Cycles Lithium Iron Phosphate Battery and releases to the market since today. The result of upgrades in technologies proves to be very positive. The finished China Wholesale 12v 100ah Rechargeable Lifepo4 Battery Lithium Iron Lifepo4 100a Bms 4000 Cycles Lithium Iron Phosphate Battery is characterized by stable quality.It can play out its greatest value in the field(s) of Lithium Ion Batteries. Under the guidance of quality-oriented management theory, Pine Energy (Shenzhen)co., Ltd continually ride the development trend of the times and continuously implement the strategic transformation. Our aim is to not only satisfy the needs of customers but also create needs for them.
| Brand Name | PINE | Model Number | PN-GR-12150 |
| Battery Size | 18650 | Place of Origin | China |
| Weight | 14.4KG | Warranty | 3years |
| Anode Material | LFP | Application | Home Appliances, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems |
| Product name | Lithium Battery | Efficiency | 99% |
| Chemistry | LifePo4 | Configuration | 4S3P |
| Case Material | ABS | Enclosure Protection | IP55 |
| Short Circuit Protection | 200-400μs | Low Temperature Cut-off Charge | 32℉ 0℃ Customized |
| High Temperature Cut-off Charge | 129.2℉ 54℃ Customized | Shipping Classification | 129.2℉ 54℃ Customized |
| Chargeable | Yes | Certification | CE[Battery], UN38.3[Battery] IEC62133[ce |
Electrical Specification | Mechanical Specifications | ||||

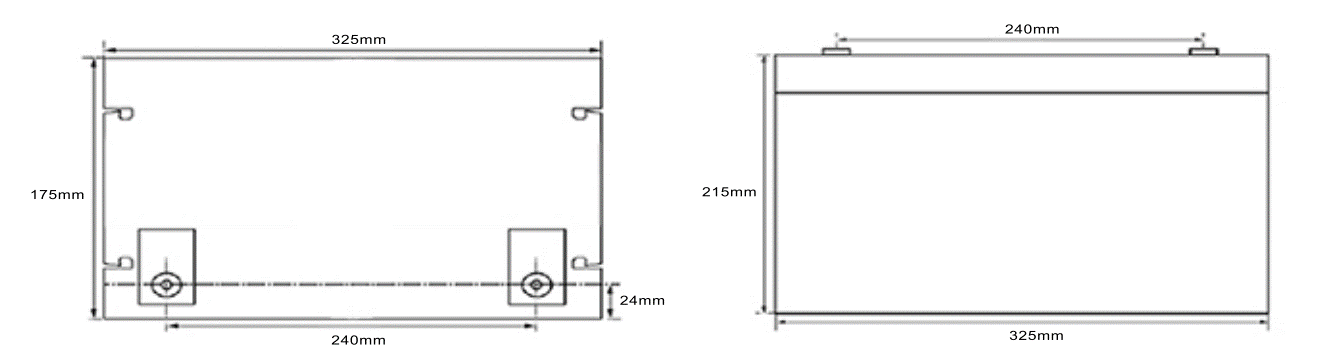

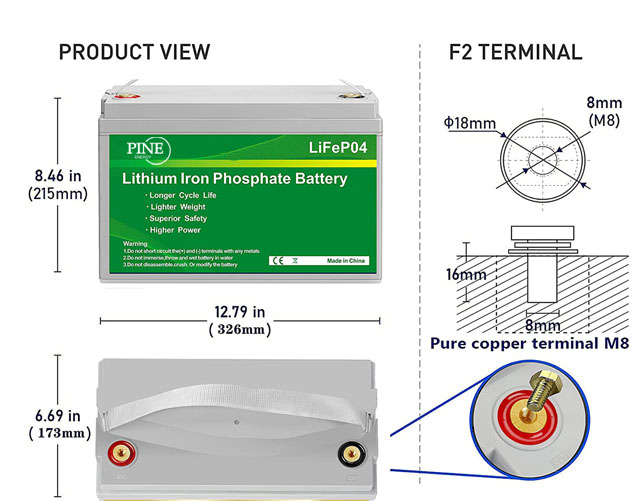

Nominal Voltage: | 12.8V | Dimensions: | 325*175*215mm | ||
Nominal Capacity | 100Ah | Weight: | 13KG | ||
Capacity @20A | 300min | Terminal Type: | M8 | ||
Energy | 1280Wh | Case Material: | ABS | ||
Resistance | ≤30mΩ @ 50% SOC | Enclosure Protection: | IP55 | ||
Efficiency: | 99% | Cell Type: | Cylindrical/Prismatic | ||
Self Discharge | ≤3.5% Per Month | Chemistry: | LifePo4 | ||
Maximum Modules in series of Parallel: | 4 | Configuration: | 4S17P/4S2P/4S1P | ||
Discharge Specifications | Charge Specifications | ||||
Maximum Continuous Discharge Current | 100A | Recommend Charge Current | 5A-50A | ||
Peak Discharge Current | 260A≤5s | Maximum Charge Current | 50A | ||
BMS Discharge Current Cut-off | 300A±50A [2.2±1ms] | Recommed Charge Voltage | 14.2-14.6V | ||
Recommend Low Voltage Disconnect | 8.8V | BMS Charge Voltage Cut-off | 15.0V[3.75±0.1V] | ||
BMS Discharge Voltage Cut-off | 8.8V[2.2±0.08 vpc] [100±50ms] | Reconnect Voltage | 14.6V[3.65±0.1V] | ||
Reconnect Voltage | 10V[2.5±0.1vpc] | Balancing Voltage | 14.0V[3.5±0.025vpc] | ||
Short Circuit Protection | 200-400μs | Balancing Current | 35±5mA | ||
Temperature Specifications | ||
Discharge Temperature | -4 to 140℉[-20 to 60℃] | |
Charge Temperature | 32 to 113℉[0 to 45℃] | |
Storage Temperature | 23 to 95℉[-5 to 35℃] | |
BMS High Temperature cut-off Discharge | 149℉[65℃][Customized] | |
Reconnect Temperature | 122℉[50℃][Customized] | |
Low Temperature Cut-off Charge | 32℉[0℃][Customized] | |
High Temperature Cut-off Charge | 129.2℉[54℃][Customized] | |
